Mixed-Initiative Dialog for Human-Robot Collaboration

Albert Yu1, Chengshu Li2, Luca Macesanu1, Arnav Balaji1, Ruchira Ray1, Raymond Mooney1, Roberto Martín-Martín1 1UT Austin, 2Stanford
PDF

Humans collaborate best through effective communication, during which negotiation, proposals, and suggestions can be conveyed about who is best suited to perform each part of a complex task.

By extension, seamless human-robot collaboration on long-horizon tasks also requires effective communication. For instance, the robot may need to ask the human for help on steps it cannot perform, and the human may prefer to do the sensitive but not the tedious steps.

This demands a communication paradigm that is not one-way, where the human does all the talking by commanding the robot, but bidirectional, where both the human and robot can initiate dialog and proposals to best divide up steps of a complex task.

To improve human-robot collaboration, we introduce this mixed-initiative dialog paradigm to a real-world scenario of long-horizon collaborative mobile manipulation. We demonstrate through user studies with 18 unique participants that our system, MICoBot, can collaborate with humans exhibiting a wide spectrum of behaviors and engage in long, 20+ turn dialog exchanges to complete long-horizon tasks as an effective robotic collaborator.



Click here to try conversing and collaborating with MicoBot in simulation.

3-min Introduction

MICoBot Overview

What is Mixed-Initiative Dialog?

Mixed-initiative dialog is a communication paradigm where both agents (human and robot) are able to ask each other questions, propose ideas, offer suggestions, in addition to responding and negotiating with the other agent.

MICoBot (Mixed-Initiative Collaborative Robot) is the first work to our knowledge to connect mixed-initiative dialog to real-world human-robot interaction.

Technical Approach

Prompt Samples

Meta Planner | p_help estimator | Verbal Action Executor

LLM baseline

Experiments

User Study Samples

We show recordings of our system running in-the-wild with real human collaborators during our user studies.

Task 1: Open and Pour Package into Bowl

This was our shortest task and required the least human effort. This user study reenactment (using the exact same dialog as what occurred in our actual user study) demonstrates an initially reluctant human that gets convinced by the robot to help on the step the robot is incapable of.

Task 2: Assemble Toy Car

This task required the most human effort, and this user study is an example of a mostly compliant human that occassionally rejects the robot's help requests.

Task 3: Pack Gift Box

This user study exhibits a better balance between human and robot-initiated dialog exchanges compared to the previous two user study videos.


Complete Compilation of User Study Dialog Transcripts

See our complete list of dialog transcripts from all 18 participants in our real-world user studies. In particular, some interesting exchanges (both success and failure cases) are: Compare this to the 18 user study dialog transcripts from our LLM baseline, which exhibit considerably less mixed-initiative dialog and collaborative success.

Results

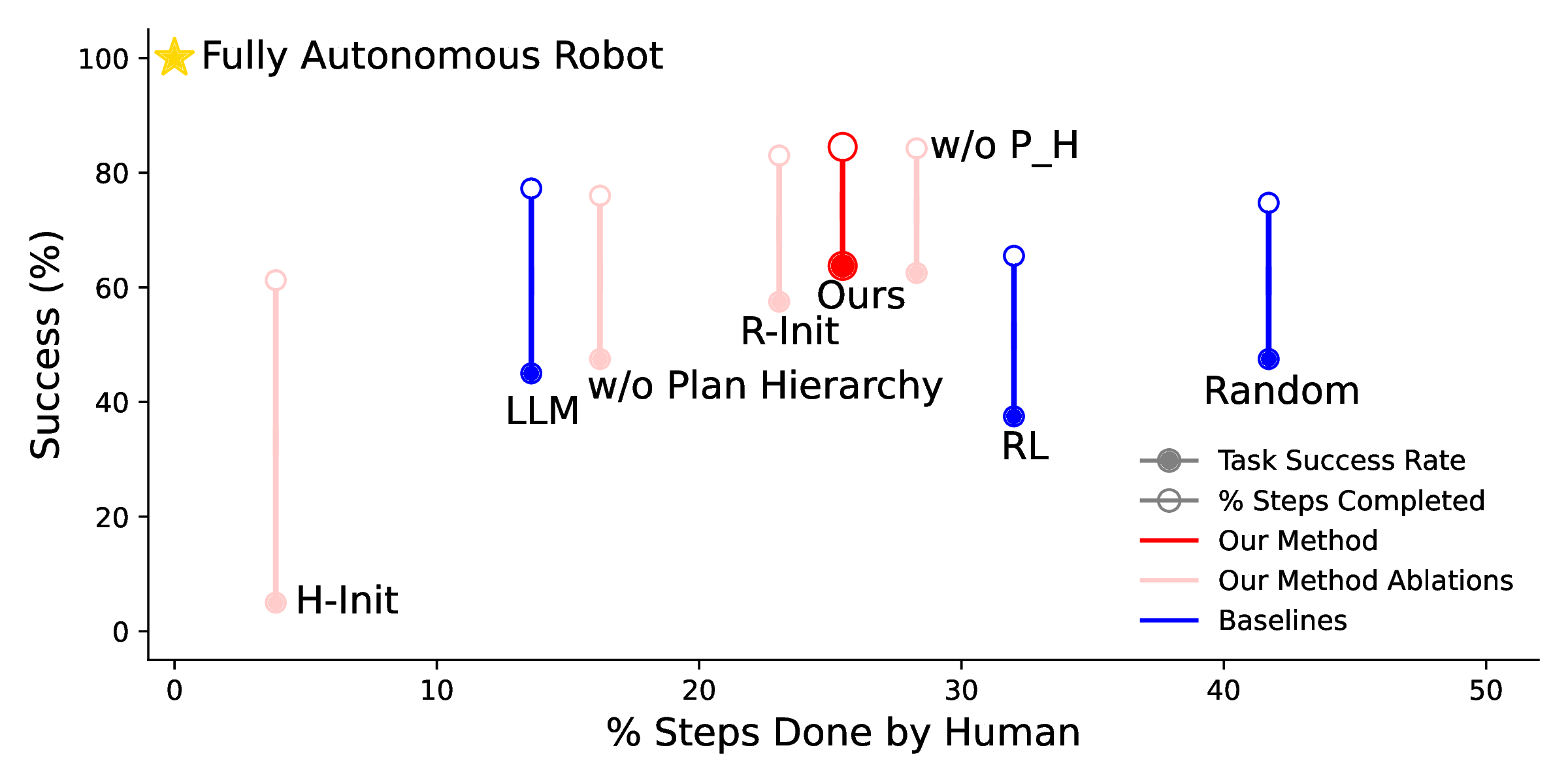

Performance Average over Real (left) and Sim (right).

Figure 1 Figure 2

Does our method achieve the best trade-off between task success and minimizing human effort?

In our real-world user study, MICoBot achieves a 61% task success rate, compared to 0% for the LLM baseline, by leveraging human assistance on 38% of the steps. (Figure on left.)

How do users feel about working with our system?

In an A/B blind preference test, 83% of the 18 users preferred our method MICoBot over the LLM baseline, and rated MICoBot considerably higher on four Likert-score metrics.

Is mixed-initiative dialog critical to our method's performance?

The ablations in simulation demonstrate our full method outperforms both ablated variants that restrict dialog to single-initiative modes: robot-only initiation (R-init) and human-only initiation (H-init). (Figure on right.) These results underscore the importance of mixed-initiative dialog in enabling flexible, robust human-robot collaboration.
